When it comes to repairing and securing machinery, hairpin cotter pins are often an essential component. These tiny, yet mighty, pins come in a variety of sizes to fit specific needs and purposes. However, with so many sizes available, it can be challenging to determine which size is the right one for the job at hand.
That’s where a hairpin cotter pin size chart comes in handy. By using a size chart, you can quickly and accurately identify the right size pin for your project,
So, whether you’re a seasoned mechanic or a DIY enthusiast, read on to learn more about how to choose the right hairpin cotter pin size for your needs.
Hairpin Cotter Pins Size Chart
| Use on Shaft Size [in] | Wire Diameter [in] | Overall Length [in] | Material | WW P/N Cross Reference |
| 1/8 to 3/16 | 0.047 | 0.594 | Zinc Plated Steel | 221 |
| 3/16 to 1/4 | 0.054 | 0.969 | Zinc Plated Steel | 223 |
| 1/4 to 3/8 | 0.072 | 1.188 | Zinc Plated Steel | 213 |
| 5/16 to 3/8 | 0.091 | 1.625 | Zinc Plated Steel | 203 |
| 3/8 to 1/2 | 0.091 | 2.000 | Zinc Plated Steel | 228 |
| 1/2 to 9/16 | 0.120 | 2.375 | Zinc Plated Steel | 211 |
| 5/8 to 3/4 | 0.148 | 2.750 | Zinc Plated Steel | 210 |
| 7/8 to 1 | 0.177 | 3.500 | Zinc Plated Steel | 229 |
| 1/8 to 3/16 | 0.047 | 0.594 | Stainless Steel (300 Series) | 221 |
| 3/16 to 1/4 | 0.054 | 0.969 | Stainless Steel (300 Series) | 223 |
| 1/4 to 3/8 | 0.072 | 1.188 | Stainless Steel (300 Series) | 213 |
| 5/16 to 3/8 | 0.091 | 1.625 | Stainless Steel (300 Series) | 203 |
| 3/8 to 1/2 | 0.091 | 2.000 | Stainless Steel (300 Series) | 228 |
| 1/2 to 9/16 | 0.120 | 2.375 | Stainless Steel (300 Series) | 211 |
| 5/8 to 3/4 | 0.148 | 2.750 | Stainless Steel (300 Series) | 210 |
What is a Hairpin Cotter Pin?
A hairpin cotter pin is a type of fastener used to secure two objects or parts together. It is called a “hairpin” because of its unique shape that resembles a hairpin or bobby pin. The pin is made of a thin wire that is bent into a hairpin shape with two straight legs.
The legs of the hairpin cotter pin are then inserted into two corresponding holes in the objects or parts that need to be fastened together. Once inserted, the legs of the pin are bent outwards, securing the objects in place. Hairpin cotter pins are commonly used in automotive, industrial and agricultural settings, and are known for their strength, durability, and ease of use.
They are a quick and simple solution to connect two objects without the need for tools or complicated assembly instructions. With hairpin cotter pins, you can rest easy knowing that your objects will stay securely fastened together, no matter what.
Why is it Important to Select the Right Size?
Hairpin cotter pins are small yet significant components often used in mechanical and industrial applications. These pins secure various parts in place, allowing machines and equipment to function smoothly. However, selecting the right size of hairpin cotter pin is crucial to ensure optimal performance and safety.
A hairpin cotter pin that is too small can easily snap or come undone, while one that is too big can damage the parts it is meant to secure. Therefore, it is important to consider the diameter, length, and shape of the hairpin cotter pin in relation to the application. By choosing the correct size, you can avoid potential malfunctions and accidents, leading to a more efficient and safe workplace.
So next time you need to select hairpin cotter pins for your project, remember that size matters.
How to Use the Size Chart
When working on any mechanical project, it’s important to have the right size cotter pins on hand. A hairpin cotter pin size chart can make all the difference in ensuring that you choose the right pin for the job. First, make sure to measure your application to determine the diameter of the hole that the cotter pin will go through.
Then, use the size chart to select the appropriate pin size based on that diameter measurement. Keep in mind that choosing a pin that is too small can result in it slipping out of the hole while choosing a pin that is too large can cause damage to the surrounding area. It’s also important to select a pin made of the correct material for the job at hand, such as stainless steel for high-corrosive environments.
By using a hairpin cotter pin size chart, you can ensure that your project is completed safely and effectively.
Step 1: Determine the Hole Size
When it comes to using the size chart to determine the hole size, there are a few key steps to follow. First, you’ll want to take a look at the chart itself and find the section that corresponds to the type of material you’ll be working with. Once you’ve located that section, you’ll need to know the thickness of the material you’ll be drilling into.
This can be tricky to measure accurately, but you can use a caliper or other measuring tool to get as close as possible. With that information in hand, you can then look at the chart to find the recommended hole size for your specific material thickness. Keep in mind that different charts may use different units of measurement, so be sure to double-check that you’re using the right one.
Overall, using a size chart can be a helpful way to ensure that you’re drilling the right size hole for your project and material.
Step 2: Measure the Diameter of the Shaft
When it comes to choosing the right size for your machinery, it’s essential to measure the diameter of the shaft accurately. This step is critical in ensuring the correct fit of the equipment and preventing unnecessary breakdowns. To use the size chart, you need to locate the diameter of the shaft and match it against the corresponding size on the chart.
This chart provides details on the different sizes available and the specifications of each machine part. It is always advisable to double-check your measurements to be sure that you have the right size before making a purchase. When measuring the diameter of the shaft, you can use a micrometer or a caliper to get an accurate reading.
To obtain the most precise measurements, take multiple readings at different points along the shaft to ensure that the size is consistent throughout. Remember, a millimeter difference in measurements can greatly impact the performance of your machinery. It’s worth taking the extra time to get it right to protect your investments and ensure that your equipment operates effectively.
In conclusion, using the size chart can help you find the appropriate size for different machinery parts while preventing any errors that may come with guesswork. Accurate measurements can save you from costly repairs and prolong the lifespan of your equipment. Therefore, it is essential to measure the diameter of the shaft correctly and double-check your measurements before purchasing any machine part.
Step 3: Use the Chart to Find the Size
When it comes to finding the right size of clothing, using a size chart can be incredibly helpful. First, find your measurements by using a tape measure to measure your bust, waist, and hips. Once you have your measurements, compare them to the size chart provided by the brand or store you are shopping from.
Keep in mind that different brands may have slightly different sizing, so be sure to check the size chart for each one. If your measurements fall in between two sizes, it’s typically best to choose the larger size for a more comfortable fit. The size chart will also often include information on the length of the garment, such as inseam or sleeve length, which can be helpful when choosing between different styles.
By taking the time to use the size chart, you can ensure that you find the perfect fit and avoid the frustration of having to return or exchange items.
Hairpin Cotter Pin Size Chart
If you’re looking for a hairpin cotter pin size chart, you’re in the right place! Cotter pins are small but essential components in many machines and devices. They are simple devices that help to keep parts from loosening, slipping, or sliding. Hairpin cotter pins have a unique shape that makes them well-suited for certain applications where a traditional cotter pin won’t work.
In terms of size, hairpin cotter pins are available in a range of diameters and lengths to fit different shaft sizes. Generally, the diameter of a hairpin cotter pin is equal to the diameter of the shaft it will be used on. The length of the pin can vary depending on the specific application.
A hairpin cotter pin size chart can help you determine which size pin you need for your particular project. It will typically list the pin sizes by diameter and length, making it easy to find the size you need. Keep in mind that it’s important to use the right size cotter pin to ensure that it can do its job effectively.
A pin that’s too small may not be able to hold the parts securely, while a pin that’s too large may not fit properly and could damage the parts.

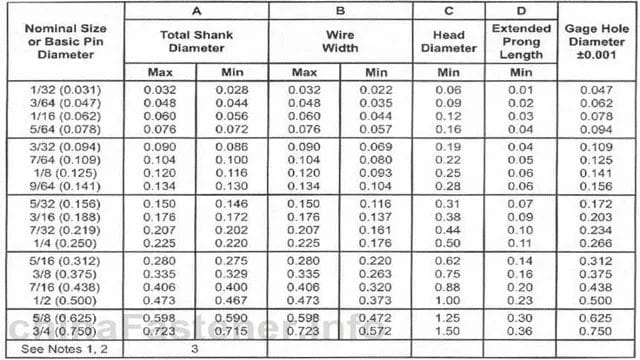

Table with Hole Size, Shaft Diameter, and Corresponding Hairpin Cotter Pin Size
Hairpin Cotter Pin Size Chart Choosing the right size of hairpin cotter pin is essential to ensure the safety and security of fasteners. A table with hole size, shaft diameter, and corresponding hairpin cotter pin size can be used as a reference to determine the suitable cotter pin size for a particular application. The hairpin cotter pin size chart simplifies the process of selecting the right cotter pin size without requiring a lot of guesswork.
To use the chart, first, identify the hole size and shaft diameter of the fastener, then find the corresponding cotter pin size in the chart. It’s important to note that the thickness of the material and the working environment should also be taken into consideration when selecting the right size of the cotter pin. A cotter pin that is too small will not provide enough security while one that is too big can cause damage to the fastener components.
With the help of the hairpin cotter pin size chart, it’s easy to select the appropriate cotter pin size for a specific application, ensuring that fasteners remain safe and secure.
Importance of Using the Correct Size for Safety and Functionality
When it comes to hairpin cotter pins, using the correct size is crucial for both safety and functionality. A hairpin cotter pin that is too small may not be able to hold the components together, while one that is too large can damage them. That’s why it’s important to refer to a hairpin cotter pin size chart.
This chart will help you choose the right size for your application, based on the diameter of the hole and the thickness of the material. A hairpin cotter pin that fits properly will provide the required holding power without damaging the parts it’s securing. In short, using the correct size hairpin cotter pin is essential for ensuring safety and proper functionality.
So, be sure to consult a hairpin cotter pin size chart before selecting the right pin for your application.
Conclusion
In the world of fasteners, finding the right size hairpin cotter pin is a key component to keeping things secure. While it may seem like a small detail, the wrong pin size can lead to big problems. So next time you need a hairpin cotter pin, consult the size chart to ensure you’re choosing the right fit.
After all, when it comes to keeping things together, size does matter!”
FAQs
What are hairpin cotter pins used for?
Hairpin cotter pins are commonly used to secure and fasten mechanical parts like wheels, gears, and pulleys.
How do I determine the size of a hairpin cotter pin?
Hairpin cotter pins are sized based on their diameter and length. You can use a hairpin cotter pin size chart to determine the proper size for your application.
Are hairpin cotter pins reusable?
No, hairpin cotter pins are designed for one-time use only. Once removed, they should be discarded and replaced with a new one.
Can hairpin cotter pins be used in high-temperature or corrosive environments?
It depends on the material of the hairpin cotter pin. For high-temperature environments, stainless steel or other heat-resistant materials are recommended. For corrosive environments, materials like brass or titanium may be used. It’s important to consult with a professional to determine the best material for your specific application.
